The Monterey Formation

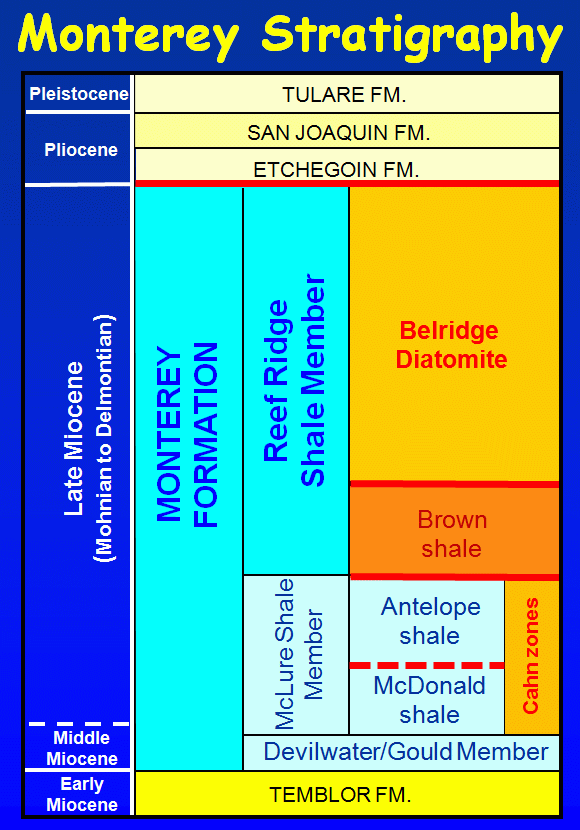

The Monterey Formation is a Miocene-age unit on the westside of the San Joaquin Valley that is equivalent to the combined interval of the Reef Ridge, Antelope, McDonald, Devilwater and Gould Members. A basal sandstone known as the Buttonbed is included by some geologists in the Monterey, whereas others place it in the underlying Temblor Formation. The Monterey is largely siliceous shales interbedded with diatomites (chert) that represent deposition in low-energy, quiet-water settings in which clay particles and microfossils slowly settled out of the water column to accumulate on the ancient sea floor.

The Monterey diatomites and shales are replaced in some parts of the basin by age-equivalent sandstones that were rapidly deposited in a deep-marine setting by high-energy, sand-rich turbidity currents. Turbidite sandstones encased within the Reef Ridge Shale Member are known as the Potter, whereas turbidites encased within the older Antelope Shale are known as the Stevens. Because the Stevens and Potter were deposited by turbidity currents, they can be found out in the center of the basin. This makes the Stevens and the Potter quite different than the shallow-marine to non-marine sandstones that make up most of the reservoirs in the valley, as the shallow-marine sandstones will always be adjacent to the ancient shorelines.

Both the Potter and Stevens are important oil reservoirs in the valley, and they are referred to as sand facies of the shales that enclose them. Thus, the Stevens is a sandstone facies of the Antelope Shale Member of the Monterey, and the Potter is a sandstone facies of the Reef Ridge Shale Member. It all gets quite confusing, and understanding, and unraveling the complex terminology of the rocks of the San Joaquin Valley is one of the challanges that geologists working here must contend with.

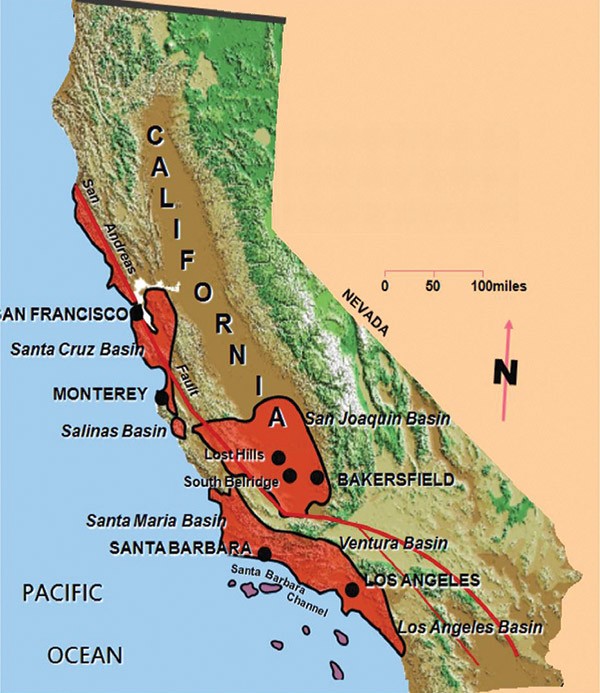

A map showing places in California where the Monterey crops out is shown on the right. The Monterey Formation also has lots of fossils in it, and a few of the better known ones are shown below. We have also provided two links (the buttons below) that have additional information on the Monterey.






A Gallery of Fossils (and other pictures) from the Monterey Formation

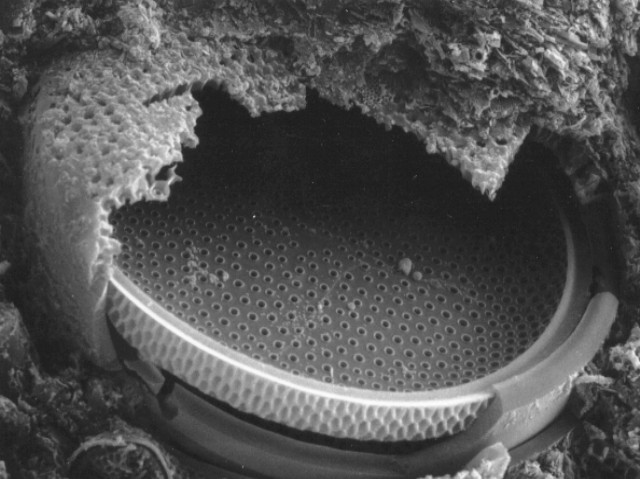

Monterey Diatom -probably of the
genus Thalassiosira

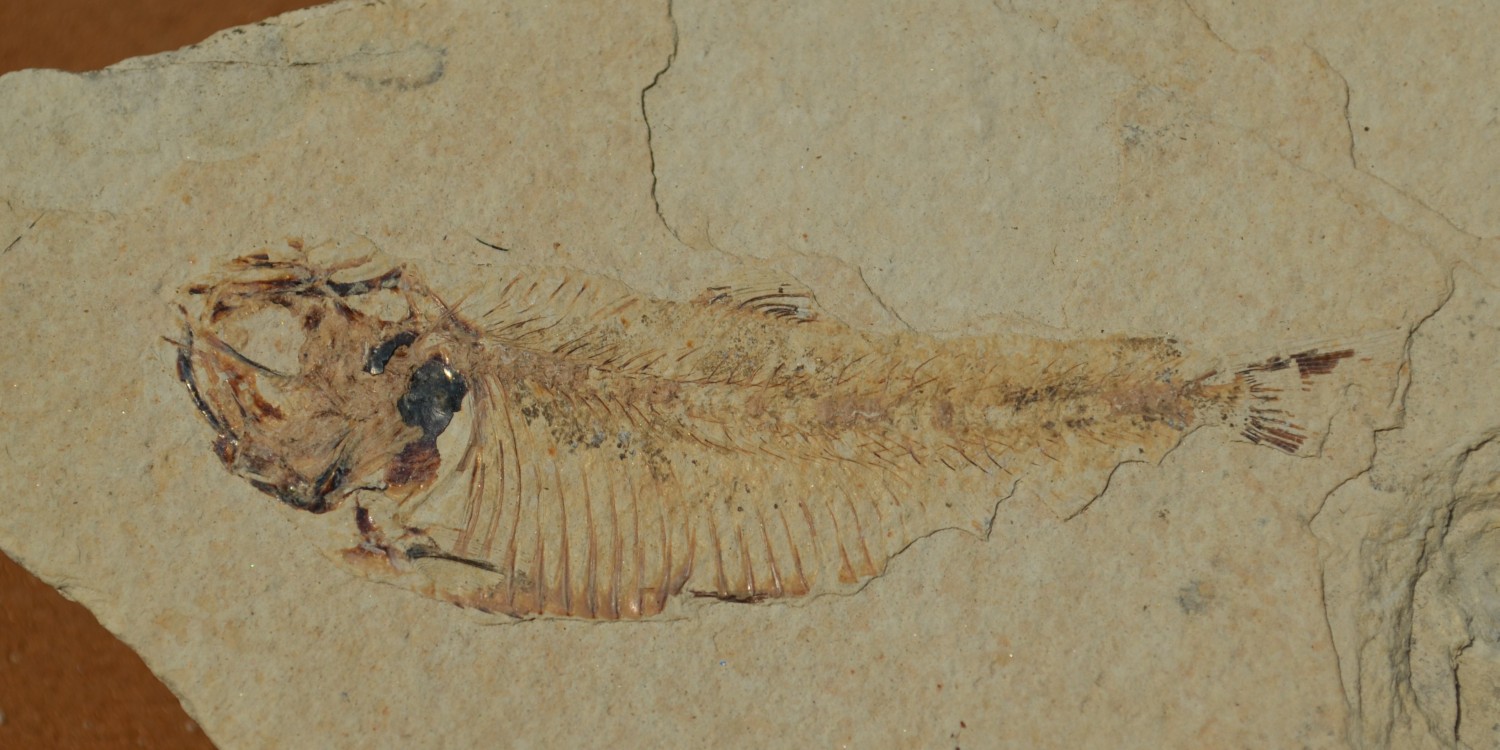

Fish Imprints

Seaweed imprint

Whale bone
photo by Rick Behl

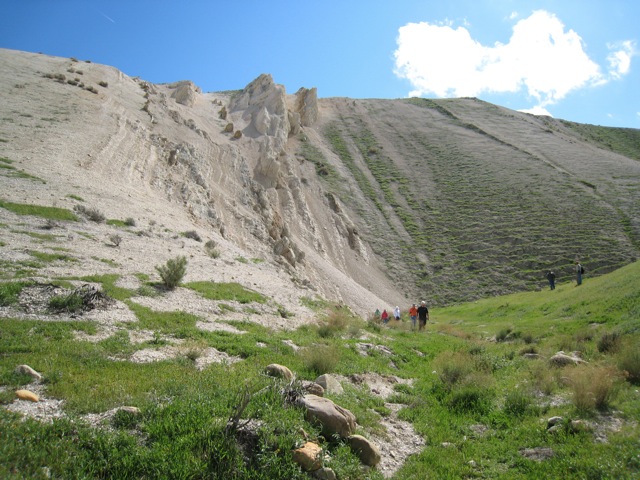

Antelope type section
(Chico-Martinez Creek)
photo by Rick Behl

Crab (Pinnixa galliheri)

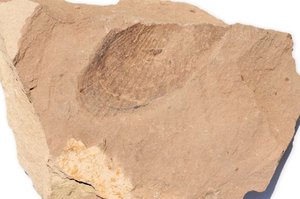

Pelecypod

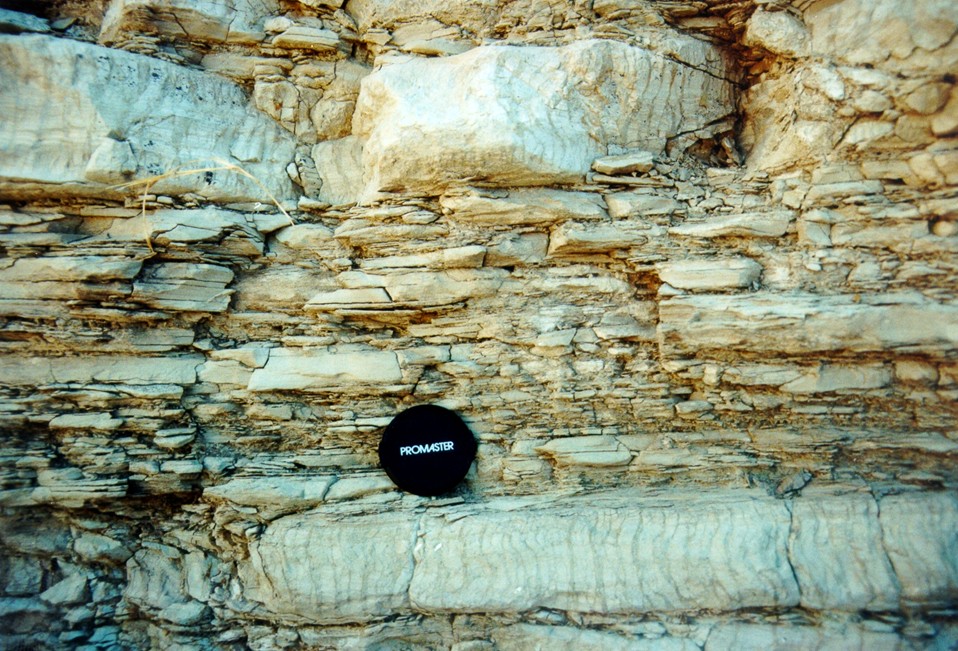

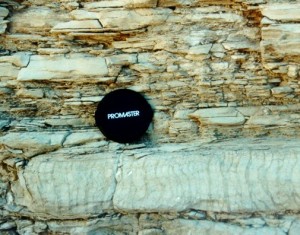

Tiger-stripe diatomite
(Intrastral Microfractured Zones)
More Pictures of Monterey diatoms and diatomites

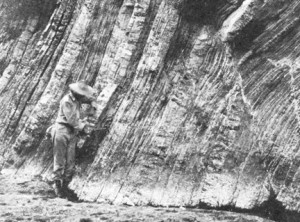

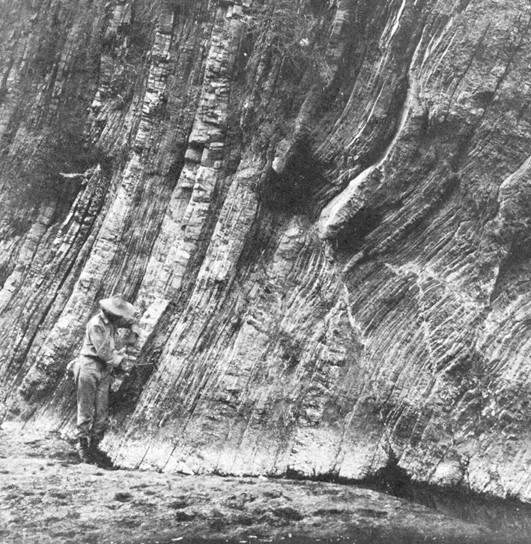

Ralph Arnold about 1906 examining
bedded Monterey diatomites
along a beach near Santa Barbara.

From left to right: Triceratium, Actinocyclus, and Stictodiscus
are three genera of diatoms that are found in the Monterey

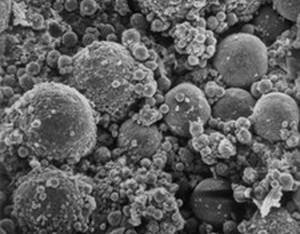

Pyrite framboids in an organic-rich
siliceous Monterey mudstone.
